QuarryView propane/natural gas fire pits features masonry planter pedestal bases and arrive fully plumbed. Each pedestal consists of four separate panels using hand laid courses of thin veneer which are bonded to a powder coated light weight steel frame. Panels are easily assembled by hand and do not require any tools. QuarryView Stonework is perfect for natural settings and pairs great with planter beds and foliage.
All QuarryView fire features are designed, engineered and manufactured with 100% non-combustible materials in the body. They can be installed on a flat, stable surface away from any combustible materials. Install fire feature on any level, outdoor non-combustible, flat stable surface or a combustible floor according. NOTE: Do not place fire pit directly on grass, dirt, or rocks this may prevent proper ventilation. Ensure proper water drainage is also incorporated into the fire pit enclosure.
SAFE OPERATION OF THIS PRODUCT IS PARAMOUNT, therefore all burner systems are UL Listed. A comprehensive, 14 page document is included with fire feature upon purchase.
IMPORTANT: Installation of Natural or LP gas should be done by a qualified installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1⁄2” psig (3.5kPa).
Fire features are shipped with all but two (2) completed connections within the fire feature itself. Installation will require connecting the gas line that leads from the gas valve to the underside of the burner, and the line that leads from the gas valve to your gas supply. Make sure to use PTFE on the threads at these connection(s).
This fire pit requires cross ventilation to ensure no possible build up of gas under the burner. The body of the fire pit was designed with the proper amount of free area to ensure adequate ventilation.
QuarryView propane/natural gas fire pits are turn key ready.

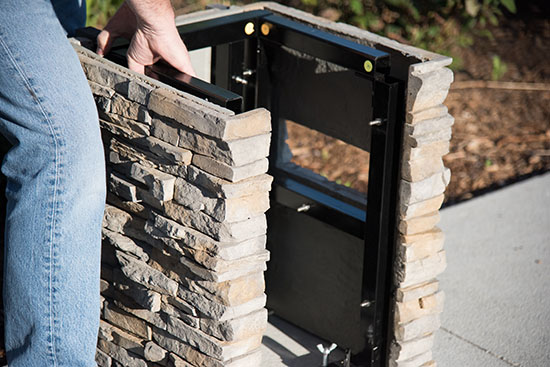

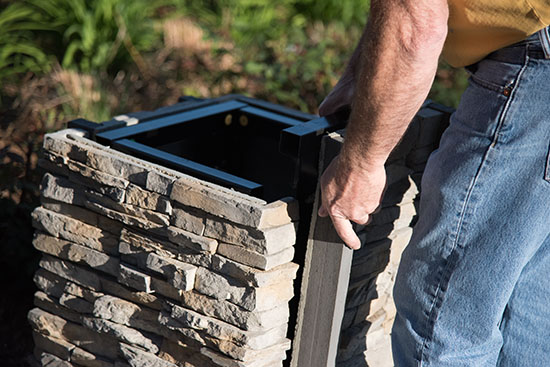

Panels are easily assembled by hand and do not require any tools.
Choose wood burning, propane or natural gas; 16inch or 20inch height; optional slide out drawer for 20inch models; choose glass color; stone profile; and accent color.
|QuarryView Propane Fire Feature|
|QV7-2100||QuarryView Stone Pedestal, Propane, 20inch fire pit||43"x43"x23"||650#|
|QV7-2200||QuarryView Stone Pedestal, Propane, 20inch fire pit w/ slide out drawer||43"x43"x23"||700#|
|QuarryView Natural Gas Fire Feature|
|QV7-3000||QuarryView Stone Pedestal, Natural Gas, 16inch fire pit||43"x43"x23"||650#|
|QV7-3100||QuarryView Stone Pedestal, Natural Gas, 20inch fire pit||43"x43"x23"||700#|
QuarryView seating steel tubing framework has a recycled material content of 84% of which 73% is post consumer content. For more information about SiteScapes sustainable products and policies, please refer to our Environmental Statement.
QuarryView stone information is detailed and provided by Eldorado Stone. Download Eldorado Stone Leed Information for details.
CAUTION! Media such as (i.e. lava rock, lava stones, lava boulders) has the potential of thermal spalling. This is a process that may occur when media is wet and moisture gets trapped inside of the material due to rapid temperature differences. When this happens the media has the potential to crack or “pop” outside the fire feature.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a fire feature when heavy rains, high humidity and moisture are present. Light the fire feature; leave the area allowing any moisture in the media to dissipate. We strongly recommend that during this drying out time that you monitor the fire feature from a distance. This drying out period should be no less than 30 minutes. Continue monitoring the flame from distance to ensure that all popping has ceased before fully enjoying the fire.
